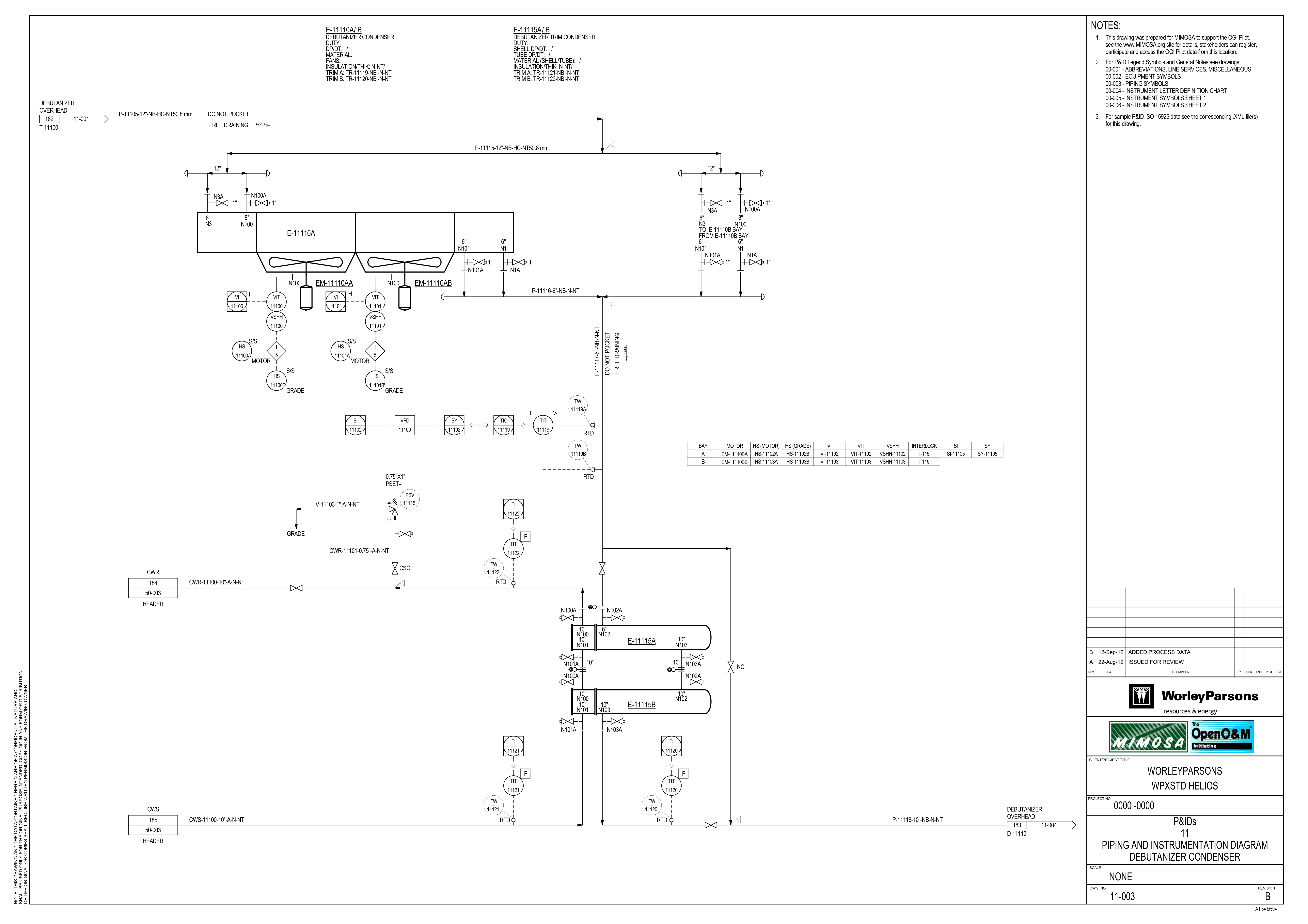

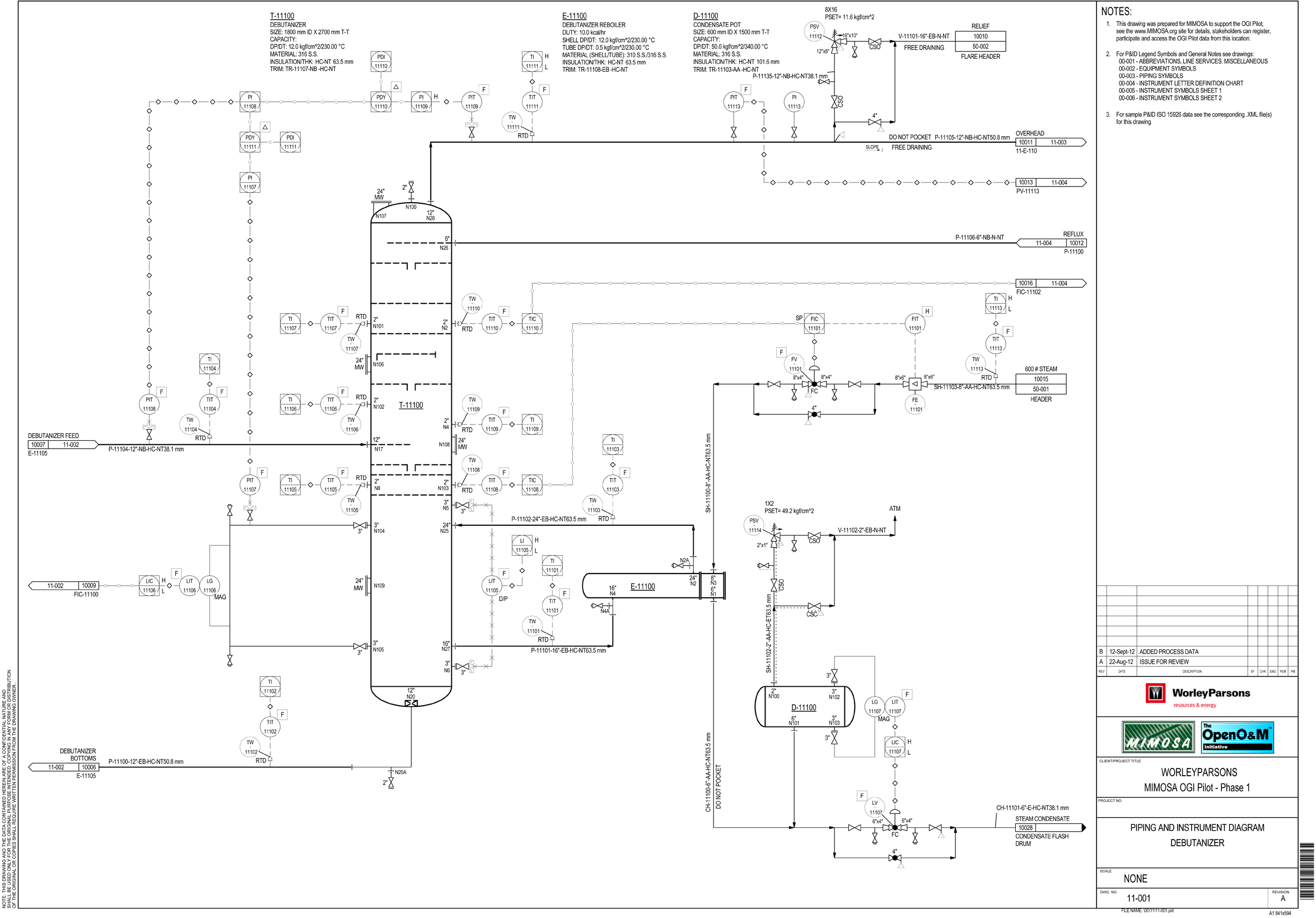

The debutanizer fractionator, typically referred to just as a “debutanizer”, is a fractional distillation column used to separate butane during the refining process. The data set is represented as four P&IDs spanning the debutanizer tower, feed-bottoms, condenser and receiver.

Contents

OIIE OGI Pilot 3.1 Data

The OGI Pilot 3.1 focused on the Condenser Unit P&ID and the data files were provided by Advisian Digital (Worley).

Advisian Digital/Worley

Data set last update 2019-03-08

Yokogawa

Yokogawa Electric Corporation have provided the product model datasheets in MIMOSA CCCOM ISDD format for the instruments used in the demonstration.

Data set last update 2019-10-23

PdMA

PdMA Corporation collected and published condition and operational data and also performed analytics on it to be able to provide health assessments and work advisories for the instruments used in the demonstration in MIMOSA CCCOM format.

University of South Australia (UniSA)

UniSA have provided the following MIMOSA CCOM 4.1.0 XML transformations of the above P&ID product export.

Data set last update 2019-10-23

Assetricity

Assetricity have provided a MIMOSA CCOM 4.1.0 XML version of the instance and reference data set.

Data set last update 2019-10-23

Previous OGI Pilot Data

WorleyParsons

Intergraph SmartPlant P&ID 2009 (06.00.05.0078 SP 5) and XMpLant 7.3.0.0 were used for the P&ID XML exports.

Data set last update 2012-09-09

Download all files

AVEVA

AVEVA have drafted the P&IDs in AVEVA P&ID and have provided the following XML outputs based on ISO 15926 Proteus specification.

Data set last update 2012-09-18

Download all files

Bentley

Bentley have drafted one of the P&IDs and have provided an ISO 15926 OWL export and supplementary Bentley ecXML export. Bentley OpenPlant PowerPID V8i Select Series 5 (Build Version 8.11.10.38) was used for both exports.

Data set last update 2013-10-25

Download all files

University of South Australia (UniSA)

UniSA have provided the following MIMOSA CCOM 3.2.3 XML transformations of the above P&ID product exports.

Data set last update 2013-05-29

Download all files

Noumenon Consulting

Noumenon have provided a reference XMpLant conversion of the WorleyParson’s drafted Intergraph P&IDs. XMpLant 7.3.0.0 was used for the P&ID XML exports.

Data set last update 2012-09-14

Download all files

Reference Data

The OGI Pilot uses the PCA Reference Data Library (RDL) for the majority of class descriptions. Where the PCA RDL is insufficient, reference data from the MIMOSA OSA-EAI have been used, and where both have been insufficient, classes for the OGI Pilot have been developed.

Data set last update 2013-11-27

Note that the original endpoint has been deprecated and the endpoint link endpoint above has been updated to the new endpoint/referenced data. Also, the O&M SIG Sandbox is no longer available. In the future we will endeavour to recreate the lists from the SPARQL queries listed below, which currently do not work.

The reference data set is also available on the Joint MIMOSA/PCA O&M SIG sandbox. For convenience, below are some common SPARQL queries that can be run against the O&M SIG Sandbox.

Assetricity

Assetricity have provided a MIMOSA CCOM 3.2.3 XML version of the reference data set.

Data set last update 2013-11-27
